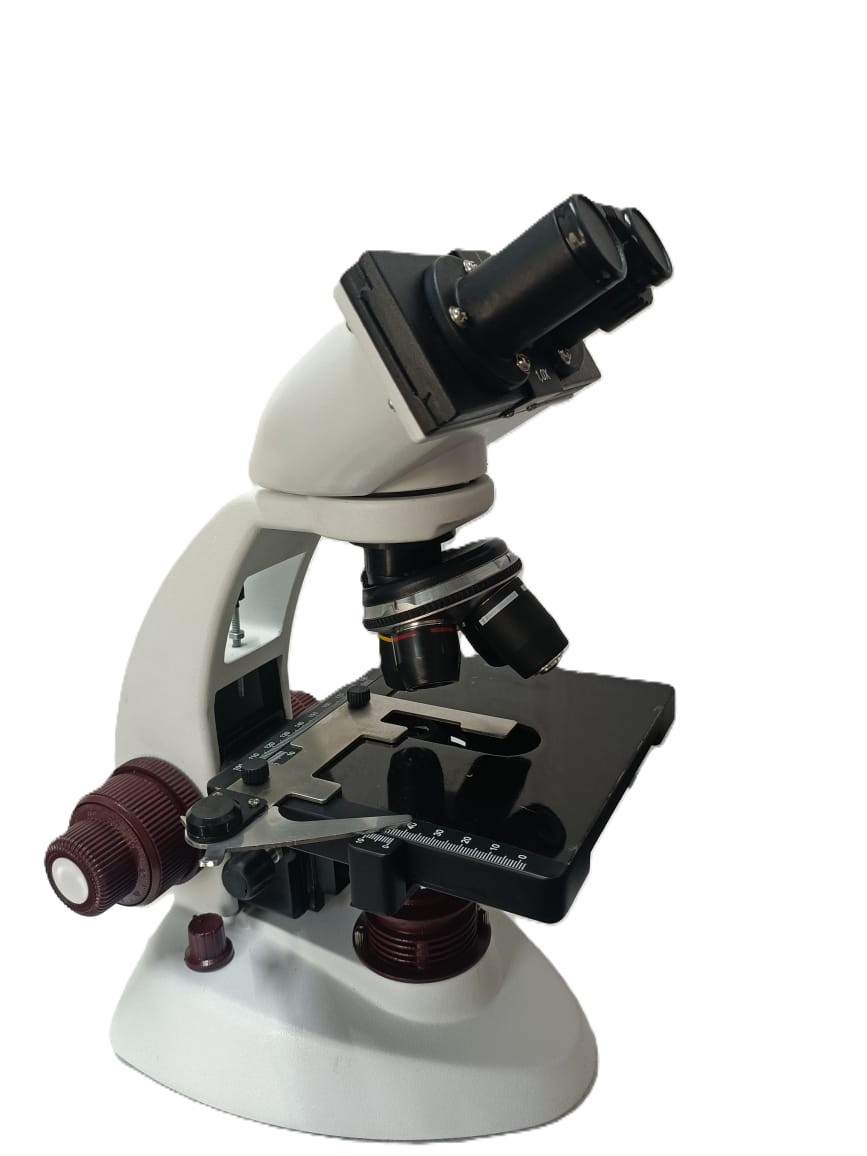

research-microscopes

A Research Microscope is an advanced optical instrument designed for detailed and high-precision microscopic studies in laboratories, research institutions, and universities. It provides superior image quality, higher magnification, and multiple observation techniques for biological, medical, and material science research.

1. Optical System: Infinity-corrected plan achromatic or plan apochromatic optics

2. Observation Head: Trinocular head, 360° rotatable, inclined at 30°

3. Eyepieces: Wide-field (WF10x/18 or WF10x/20)

4. Objectives: Plan Achromatic 4x, 10x, 40x (spring), 100x oil immersion (spring)

5. Stage: Double-layer mechanical stage, X-Y movement with coaxial controls

6. Focusing: Coaxial coarse and fine focusing, tension adjustable

7. Condenser: Abbe condenser N.A. 1.25 with iris diaphragm and filter holder

8. Illumination:

   • Built-in LED or halogen illumination (variable intensity)

   • Koehler illumination system (optional)
